荷兰EELA S24+ 混音台电话网络传送器

荷兰EELA S24+ 混音台电话网络传送器

2013年01月14日传送器浏览量:0
  • 品牌:EELA
  • 型号:S24+
  • 价格:咨询客服
如果找不到你想要的产品,请联系客服点击联系客服
产品描述

S24+是双版本的S20A。通过使用相同的微芯片技术在我们的广播书桌,我们取得了一个用户友好,灵活的外部广播单元,适用于工作与模拟studiolink任何类型的电话线或4线在任何combination.The的调音台部分一直延伸, 3个话筒/线路输入,两名记者,并有广泛的通信设施。

内置的液晶显示屏和软键的菜单结构化的工作模式保持清晰和简单的操作。 S24可以在任何地方使用,因为它的体积小,重量轻,但ruggid建设与电池供电。一种电源包括可选的电源操作。

THE EELA S24 REPORTOPHONE

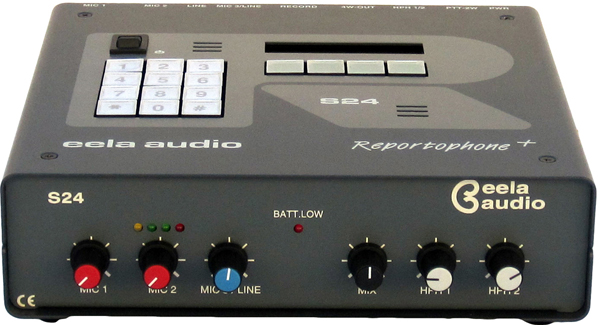

The S24 Reportophone is an easy to use, battery or mains powered, full function radio reporter telephone unit for POTS telephone lines. It can be useswith 2 reporters or a reporter and a guest each with their own microphone and headphone.

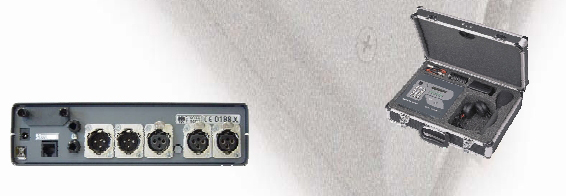

It has a built-in mixer with inputs for 2 microphone and one microphone / line as well as a line output for recording. The two high level headphone monitor outputs provide good communication with the studio even in noisy environments All audio connections are balanced and filtered against HF pick up. In all cases soft keys act as pushbuttons for sending talkback to an output.

The built-in LCD display and the soft keys together with the menu structured working modes keep the operation clear and simple.
High signal quality is achieved by using dedicated signal processing (mixing, equalizing and compression) to make optimal use of the available bandwidth without overload or low levels.

All normal telephone functions are available including tone or pulse dialing, a built-in buzzer enables incoming call reception. The S24 can also be used in “Local Battery”mode.
